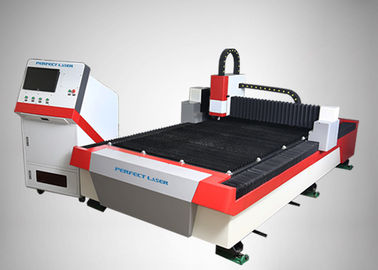

Fiber Laser Metal Sheet Cutting Machine Energy Saving Sheet Metal Cutter (Red&White)
(Model:PE-F3000-3015)
►Description of fiber optic laser cutter
Perfect Laser is a world famous manufacturer of industrial laser equipment. Since 1995, we focus on the development and production of various types of laser machinery and CNC equipments. This type of fiber-optic cutting machine, PE-F300-3015, is a high-tech equipment environmentally-friendly and energy-saving, which is researched and developed independently by Perfect Laser.
PE-F3000-3015 adopts the fiber laser technology from German and laser cutting heads imported from the United States.Laser table cutter precisely controls the cutting position of laser beam through the advanced dynamic focusing system. Metal cutting laser cutter has high precision, less power consumption, no pollution, high environmental protection, small maintenance. With the minimum return on investment, Perfect Laser metal fiber cutter is your wise choice.
►Product Features of fiber optic laser cutter
1.High photoelectric conversion efficiency, low cost: the maximum photoelectric conversion efficiency of metal fiber cutting machine can reach about 30%, which is three times of CO2 laser cutting machine. The power consumption of the whole machine is greatly reduced, saving the cost of use.
2. Stable performance and quality assurance: the machine adopts imported fiber laser from Germany, panasonic servo motor from Japan and laser cutting head from the United States, with a service life of up to 100,000 hours.
3. The quality of the beam is very good, and the cutting speed is very fast: the quality of the top beam, the finer cutting line, the smaller focusing point, the better cutting effect and the faster cutting speed. The cutting surface of metal fiber cutting machine is smooth and beautiful.
4. To provide comprehensive service: perfect laser to provide comprehensive pre-sale support, sale and after-sale service training, and according to the actual cutting needs of customers to provide personalized metal fiber cutting machine instructions. So that customers can grasp the basic theory of metal fiber cutting machine, safety protection measures and equipment maintenance skills in a short time.
►Product Advantage of fiber optic laser cutter
| Items | Perfect Laser |
| Excellent Beam Quality |
Smaller focus diameter and high work efficiency, high quality. |
| High Cutting Speed | Cutting speed is more than 20m/min |
| Stable Running |
Adopting the top world import fiber lasers, stable performance,key parts can reach 100,000 hours; |
| High Efficiency for Photoelectric Conversion |
Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency |
|
Low Cost & Low Maintenance
|
Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no needreflect lens, save maintenance cost; |
| Easy Operations | Fiber Line Transmission, No Adjustment of Optical Path; |
| Super Flexible Optical Effects |
Compact Design；Easy to Flexible Manufacturing Requirements. |
►Specifications of fiber optic laser cutter
|
Model |
PE-F200 -3015 |
PE-F300 -3015 |
PE-F500-3015 |
PE-F800 -3015 |
PE-F1000 -3015 |
PE-F2000 -3015 |
|
Laser Power |
200W |
300W |
500W |
800W |
1000W |
2000W |
|
Max. Cutting Thickness |
1~2mm |
2~3mm |
3~5mm |
6~10mm |
8~12mm |
16~20 mm |
|
Work Table Max. Load |
700 KGS |
700 KGS |
800 KGS |
900 KGS |
1000 KGS |
1000KGS |
|
Laser Type |
Imported Fiber Laser |
|||||
|
Laser Technology |
Germany Technology |
|||||
|
Working area |
3000 x 1500 mm |
|||||
|
X axis Stroke |
3000 mm |
|||||
|
Y axis Stroke |
1500 mm |
|||||
|
Z axis Stroke |
150 mm |
|||||
|
Max. Cutting Speed |
12m/min (up to materials) |
|||||
|
Transmission Way |
Imported ball screw |
|||||
|
Table-Driven System |
Japanese Panasonic Servo Motor & Driver |
|||||
|
Focus Method |
Dynamic Following and Automatic Adjust Focus |
|||||
|
Location Precision |
≤±0.05 mm |
|||||
|
Re-Location Precision |
±0.02 mm |
|||||
|
Max. Moving Speed |
100m/min |
|||||
|
Laser Wavelength |
1070nm |
|||||
|
Minimum Line Width |
≤0.1mm |
|||||
|
Supporting Format |
PLT, DXF, BMP, AI |
|||||
|
Power Demand |
380V/50HZ |
|||||
|
Control Method |
Offline Movement Control |
|||||
|
Control Software |
Perfect Laser Professional Laser Cutting Software |
|||||
►Application of fiber optic laser cutter
Fiber metal laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics,
electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical
equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries. Mainly used for carbon steel cutting, silicon steel cutting, stainless steel cutting, aluminum alloy cutting, titanium alloy cutting,galvanized steel sheet cutting, pickling board cutting, aluminum zinc plate cutting, copper cutting and many kinds of metal materials cutting and so on.
►Optional Items
Rotary System: This is used for cutting round pipe
►Sample Show
